DERICK REYNOLDS
Design Services


Dazcat 12m
Cruising Catamaran
Specification

LOA
Beam
Draft
Mainsail
Jib
Genoa
Spinnaker
Engines

12.00m
7.24 m
0.79m
66.86 m2
34.66 m2
53.07m2
130m2
2x27hp
Notes
A high performance cruiser for Dazcat and Multimarine Composites Ltd

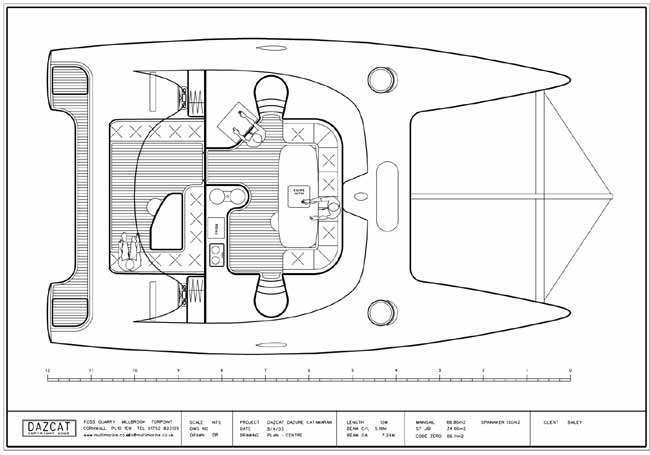

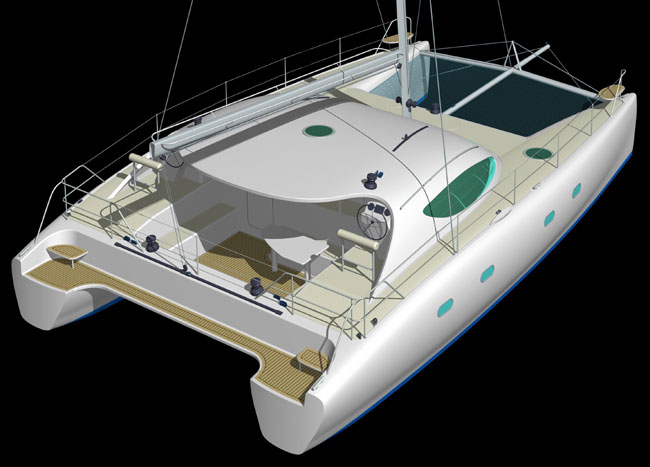

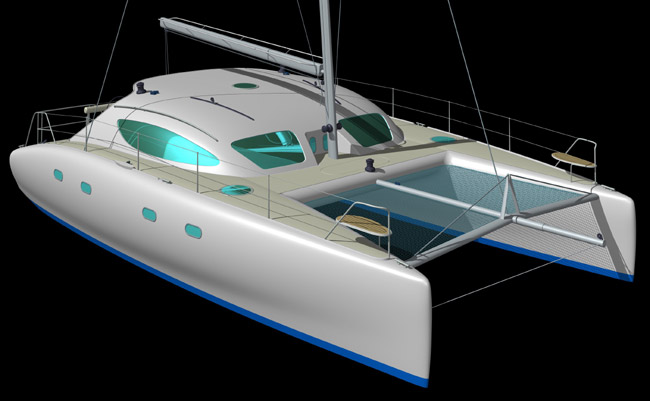

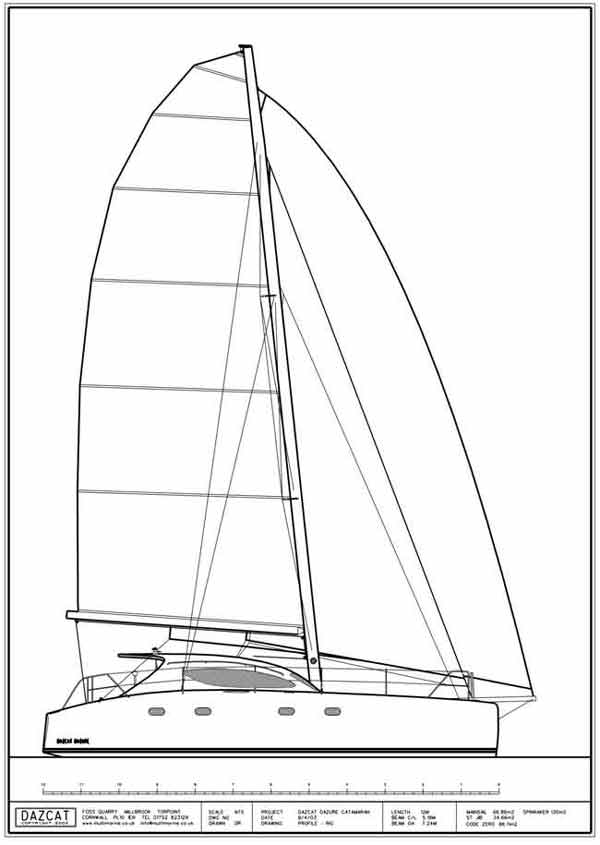

Hulls and coachroof modelled in Maxsurf then imported into CAD packages for detailing, production of renderings, 2D line drawings and full-size prints for transfer to mold stations.

Files can be easily produced for CNC laser or water jet cutting/marking.




  Back to Sailboats
